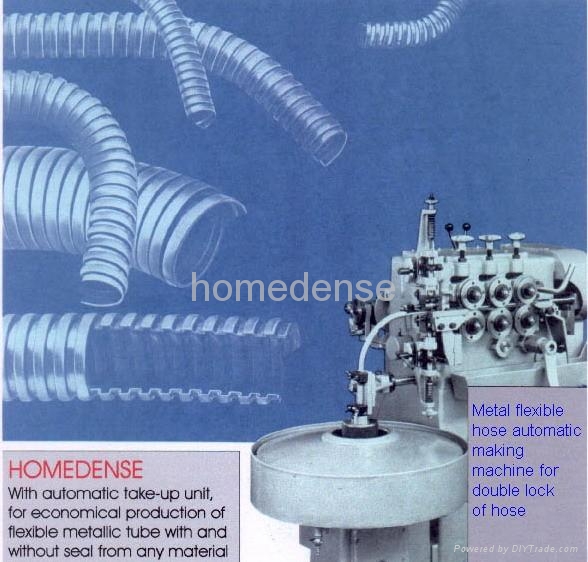

Metal Flexible Hose Making Machine
Model No.︰-
Brand Name︰-
Country of Origin︰Taiwan, China
Unit Price︰-
Minimum Order︰1 pc
Product Description
Flexible Hose Making Machine Video: http://www.youtube.com/watch?v=SxTf57wYQgk
Specification:
1. Automatic making speed adjustable.
2. Equipping material sheet sensor, when the materials coil have empty, the machine will automatic stop.
3. The flexible hose diameter from 4mm to 20 mm. and 21 mm to 100 mm. two different models for choice.
4. When the flexible hose have finish, take-up drum will automatic retractable, one
Coil material can be load in one take-up drum.
Model No. HG-25
Inside Tubing Dia.: 4.0 - 20 mm. ( 0.156 – 0.8 inch )
Materials Dimension: Width 5 mm x Thickness 0.2 mm to W. 10 x T. 0.45 mm.
( W. 0.195 x T. 0.0078 to W. 0.39 x T. 0.176 inch )
Max. Strip Feed: 45 m/ min ( 147 feet/ min )
Installed Power: 2.2 KW
Machine Dimension: L. 1460 x W. 950 x H. 1540 mm.
( L. 57.5 x W. 37.4 x H. 60.6 inch )
Net Weight with Collect Drum: 800 Kg
Model No. HG-50
Inside Tubing Dia.: 25 - 50 mm. ( 1.0 - 1.95 inch )
Materials Dimension: Width 10 mm x Thickness 0.4 mm to W. 14 x T. 0.6 mm.
( W. 0.39 x T. 0.0156 to W. 0.55 x T. 0.235 inch )
Max. Strip Feed: 50 m/ min ( 164 feet/ min )
Installed Power: 3.0 KW
Machine Dimension: L. 1860 x W. 950 x H. 1950 mm.
( L. 73.2 x W. 37.4 x H. 76.8 inch )
Net Weight with Collect Drum: 1000 Kg
Product Image
